Microscopes

Tripod reflected light and dark field transmitted light illumination (adjustable). Suitable for Zeiss Stemi series, Motic, various Euromex optics.

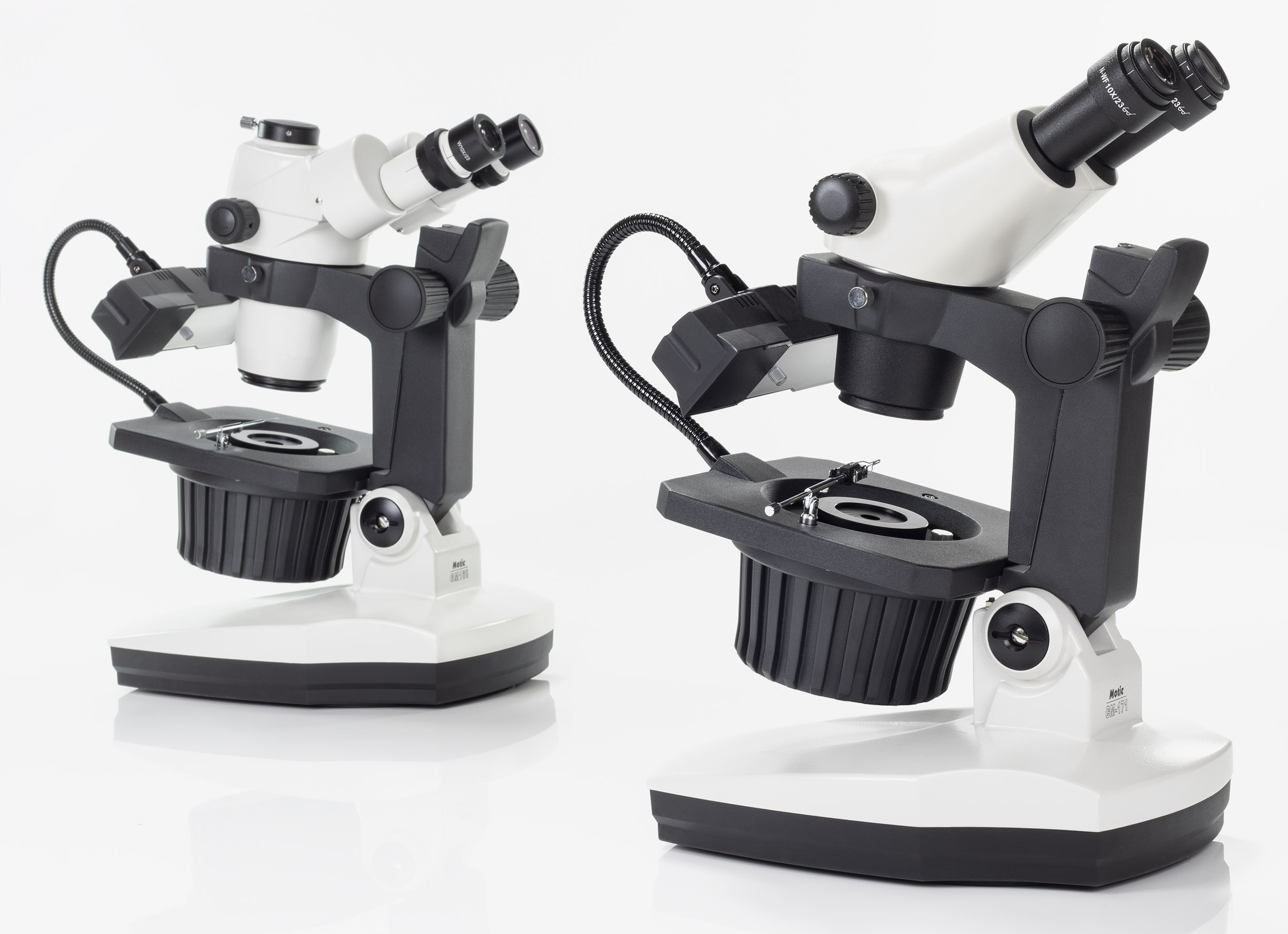

Moticam 1050 for Motic GM171-T top-mounted camera,  Cmos 1/1.8"   Output: USB, HDMI SD card slot and USBx2 for external hardware. 0,5X Cmount camera adapter (1/3 and 1/2")

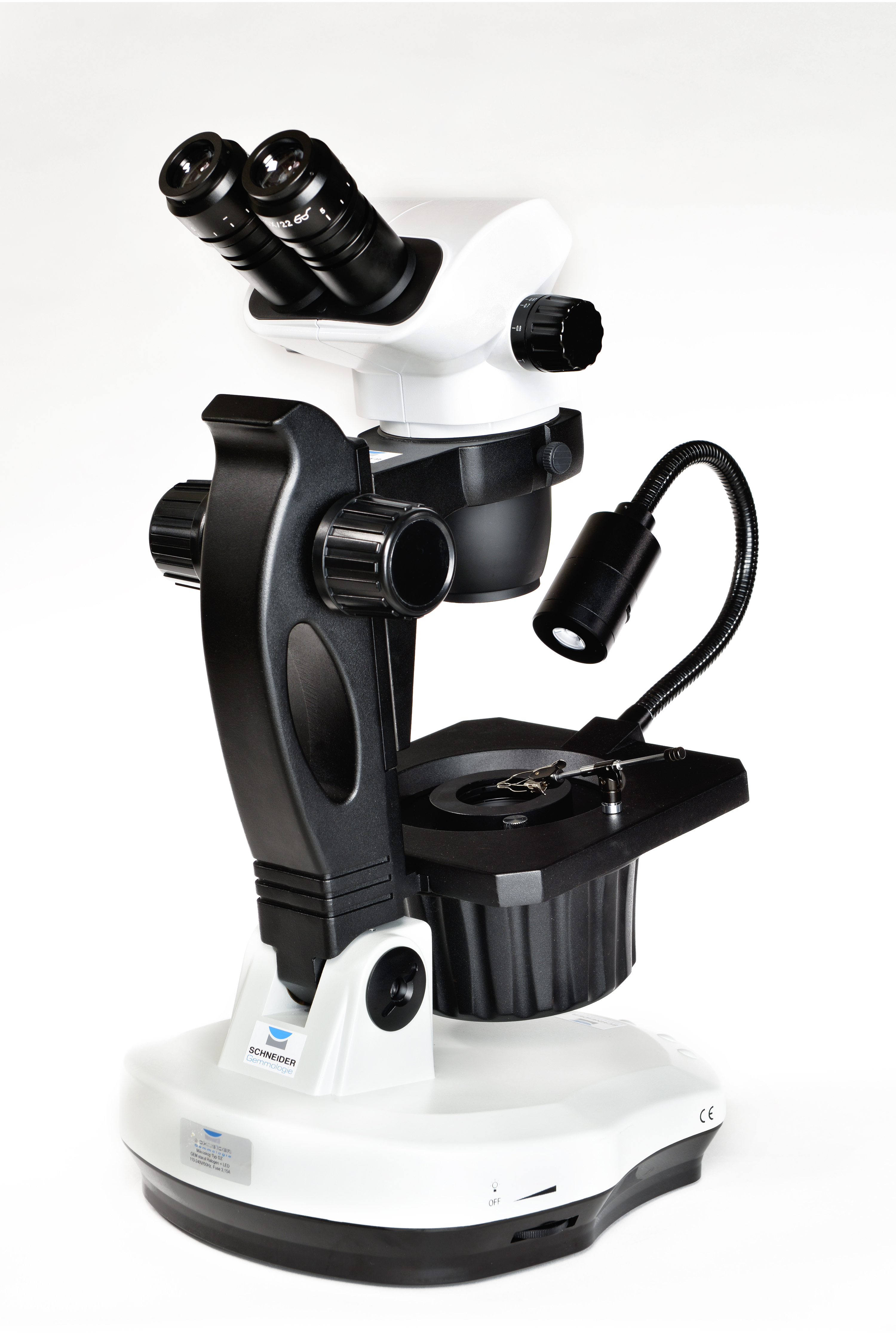

Standard-microscope for diamond- & coloured gemstone studies. High value optical system & components (see schedule). For study of mounted and unmounted gemstones. Optional also available with cold-light illumination. Darkfield-Microscope Standard Optic Standard Enlargement 6,7x-45x Stereo Optic Zoom Pair of Eyepiece 10x Stone Holder Dark Field Illumination Incident Illumination Camera attachement Trinocular Tube

Immersion base for use with various optics with connection diameter: 76mm Complete with polarization device, focusing screen, cuvette 40x40x40mm, immersion liquid n=1,4UL2 adjustable lamp, stone holder. Mains connection 90-230V

Dark field diamond and gemstone microscope with stereo optics -T trinocular.  For diamond and coloured stone examination. Suitable for examining set and loose gemstones and diamonds. Consisting of: reflected light illuminator, transmitted light, adjustable, stone holder. Trinocular optics for attachment to photo and video cameras. Magnification: 7.5x - 45x continuously variable (zoom), pair of 10x eyepieces. Base rotatable 360°, tiltable 0-45°.

Stereo zoom microscope with high end Zeiss Stemi 508 optics. Magnification 6,5X-50X zoom.Darkfield base with brightfield and extra LED light. All dimmable. Stoneholder

Standart immersion microscope with stereo zoom optics. Magnification 7X-45X.All standart equipment is include:Set of Polarizing filter, frosted glass, sample cell, Lamp UL2 dimmable, Stoneholder and immersion oil n=1,4You get and start.

Stereo zoom dark-and brightfield microscope, for testing Diamands and colored stone. With highend Zeis Stemi 508-Trinoculaire optics for mounting video and/or Camera direct. Magnification 6,5x-50xStonholder, upligt LED all lights are dimmable.Components:Base with light dimmable,Stone holderZeiss Optics Stemi 508 trinokularfor adapting cameras and video systems.

Stereo-Zoom-Immersion Microscope DE4Refractometer RF2Plate attachement for RF1Spectroscope SP100Polariscope P2 with stone holder and Konoscope lensParaffine oil n=1,4

For an easy distinction of natural gemstones from synthesis, imitates and colour-alterations. To examine coloured-gemstones in immersion-liquid (to reduce disturbing reflections). Stereo-Zoom Immersion-Microscopes with ZEISS-Optics 508 and base U2. Enlargement 6,5x-50x 6,5x-50x Pair of Eyepiece 10x Eyecups Analyzer Polarizer Ground Glass Testing Stage 2-Clawed-Tongs Sample-Cell 40x40 Bright-Field-Illumination Halide Incident Illumination Camera attachement Trinocular Tube Dichroscope Attachment

For an easy distinction of natural gemstones from synthesis, imitates and colour-alterations. To examine coloured-gemstones in immersion-liquid (to reduce disturbing reflections). Immersion-microscope with Zeiss optics Stemi 508-T trinocular for photo and video Stereo-Zoom Immersion-Microscopes with ZEISS-Optics 508-T, base U2. Enlargement 6,5x-50x 6,5x-50x Pair of Eyepiece 10x Eyecups Analyzer Polarizer Ground Glass Testing Stage 2-Clawed-Tongs Sample-Cell 40x40 Bright-Field-Illumination Halide Incident Illumination Camera attachement Trinocular Tube

Stereo zoom microscope with special LED illumination. The ultimate device for grading loose diamonds and gemstones. This device was developed in co-operation with the IGI in Antwerp over 30 years ago and has been continuously updated with innovations. The examination is carried out using transmitted light and the stones are placed on a dop. This provides a completely clear view into the stone. For the lower part, simply turn the stone over. Because it can be rotated 360° and swivelled approx. 25°. All facets can be seen by moving the disc and using the mirror. Also any engravings on the rondiste. Scope of delivery IGIscope:  Device base with special LED lighting, dimmable. Prim.90-230V  Set of 17 dops from 3.0 mm to 11.0 mm, each increasing by 0.5 mm. Or with extra cost: 1mm - 2,5mmOptics:Zeiss Stereo Zoom System Stemi 508 or 508-t (trinocular) 4.5X-50XSet of eyepieces 10X23WF Br.foc.  Zeiss optics holder  For 508-t trinocular surcharge € 850,00 Alternate Oöympus Sytem 6,4X - 45X € 250,00 Special accessories at extra charge:  Storage plate for dops € 250.00  Rail system for graduating small stones from 0.02 € 5,000.00  Camera adaptation on request.
